UML Sequence Diagrams: A Comprehensive Reference

A sequence diagram shows who talks to whom, and in what order, to get one job done. Participants are lined up across the top, time runs downward, and each arrow is a message such as a function call, an HTTP request or an event. It is the quickest way to explain a request path, an API integration or a distributed transaction.

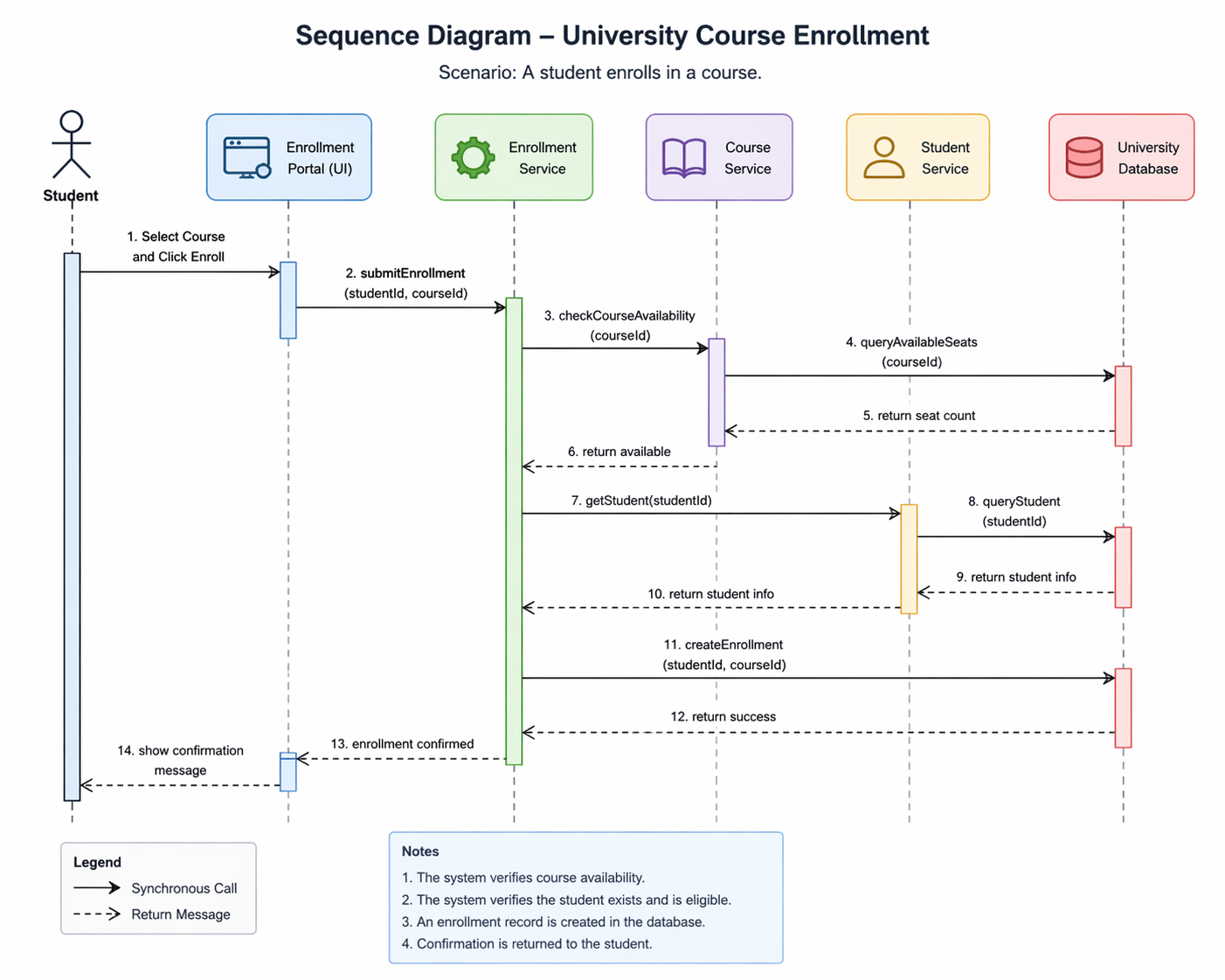

Example UML sequence diagram showing participants, lifelines, messages, and activation bars — Example sequence diagram — participants across the top, lifelines descending, messages flowing between them in temporal order.

1. Overview

Sequence diagrams are a fundamental tool in UML (Unified Modeling Language) used to visualize and document the dynamic behavior of systems by modeling the interactions between objects or actors over time. They answer the question: "How do components communicate with each other to achieve a specific goal?"

Purpose: Sequence diagrams capture the temporal ordering of messages exchanged between participants, making them invaluable for understanding complex workflows, API designs, system integrations, and debugging multi-component interactions.

Part of UML Behavioral Diagrams: Sequence diagrams belong to the interaction diagrams family, alongside communication diagrams, timing diagrams, and interaction overview diagrams. They emphasize the chronological flow and message passing rather than structural relationships.

When to Use Sequence Diagrams:

API Design: Document request-response patterns and payload transformations
System Integration: Model interactions between microservices, third-party systems, or legacy components
Debugging Complex Flows: Trace execution paths in multi-threaded or distributed systems
Security Workflows: Visualize authentication, authorization, and token exchange mechanisms
Business Process Modeling: Show workflows involving multiple departments or systems
Design Reviews: Communicate design intent and discover edge cases early

Notation Legend

Each participant has a dashed lifeline running down the page; a narrow bar (activation) shows when it is busy. Solid arrows with filled heads are synchronous calls, open heads are asynchronous messages, and dashed arrows are replies. Boxes labelled alt, opt, loop or par are combined fragments that add branching, repetition and concurrency.

2. Core Elements & Notation

Sequence diagrams consist of several fundamental building blocks. Understanding each element is essential for reading and creating effective diagrams.

2.1 Actors and Participants

Actors (typically shown as stick figures) represent external users or systems that initiate interactions. Objects/Participants (shown as rectangles at the top) represent instances of classes or system components. Each participant has a unique lifeline extending downward.

2.2 Lifelines

A lifeline is a vertical dashed line extending from each participant representing its existence over the time span of the diagram. The lifeline starts at the top of the diagram and continues downward, with time flowing from top to bottom.

2.3 Activation Bars

Activation bars (thin rectangles on the lifeline) indicate when a participant is actively processing or executing code. The height of the bar represents the duration of processing. Nested activation bars show nested method calls.

2.4 Messages and Arrows

Messages represent communication between participants. Each message type has distinct notation:

Synchronous Message (Solid Arrow →): Caller blocks until receiving a response. Typical method call.
Asynchronous Message (Open Arrow ⇢): Caller continues without waiting. Used for signals or fire-and-forget operations.
Return Message (Dashed Arrow ⇠): Explicit return value from a synchronous call. Optional but recommended for clarity.
Self-Message (Loop Back Arrow): Participant sends a message to itself, representing internal method calls or recursive processing.
Creation Message: Message creating a new instance, targeting the top of a new participant's lifeline.
Destruction (X): Explicit marker on a lifeline indicating object destruction or process termination.

Here's a basic notation overview in text form:

3. Message Types in Detail

3.1 Synchronous vs Asynchronous Calls

Synchronous calls block the caller until a response is received. The caller's activation bar extends through the callee's processing and return. Use for tightly coupled operations where the result is needed immediately.

Asynchronous calls allow the caller to continue processing immediately without waiting. The caller's activation bar ends before the asynchronous message is fully processed. Use for event-driven architectures, background tasks, and loosely coupled systems.

3.2 Request-Response Patterns

The classic request-response pattern shows synchronous communication:

3.3 Callbacks and Listeners

In callback patterns, the initial caller becomes the callee later. Object A calls Object B with a callback, then B invokes the callback asynchronously when work is complete:

3.4 Signals and Events

Signals are asynchronous one-way communications. Unlike method calls, they don't expect an immediate response. Useful for event-driven systems where components respond to events emitted by others.

3.5 Found and Lost Messages

Found messages originate from an unspecified source (shown as a filled circle on the message start). Lost messages go to an unspecified destination (shown as a filled circle on the message end). Use these when the source or destination is unknown or outside the diagram scope.

4. Combined Fragments

Combined fragments add control flow logic to sequence diagrams, allowing you to represent conditionals, loops, parallelism, and other complex behaviors.

4.1 alt (Alternatives / If-Else)

Represents mutually exclusive alternatives. The diagram shows multiple interaction sequences, each guarded by a condition. Only one interaction sequence executes based on the condition's truth value.

4.2 opt (Optional)

Represents an optional interaction sequence that executes only if a condition is true. Simpler than alt when there's only one conditional path.

4.3 loop

Represents a repeated interaction sequence. The condition determines when the loop continues or terminates.

4.4 break

Represents an exception path or early exit from an interaction. If the break condition occurs, the normal sequence is abandoned and execution jumps to the break sequence.

4.5 par (Parallel)

Represents interactions that execute in parallel. All parallel interaction sequences may execute concurrently. The diagram continues after all parallel sequences complete.

4.6 critical (Critical Section)

Represents a critical section that must execute atomically without interruption. Used in concurrent systems to indicate synchronized or protected code regions.

4.7 neg (Negative Case)

Represents an interaction that should NOT happen. Used to document invalid or forbidden sequences. Helpful for documenting what the system must prevent.

4.8 ref (Reference to Another Diagram)

References another sequence diagram, allowing you to decompose complex diagrams into smaller, reusable components. The referenced diagram is shown as a box labeled "ref" with the diagram name.

4.9 seq (Strict Sequencing)

Enforces strict sequential ordering. Messages within a seq fragment must occur in the order shown, with no interleaving from other sources.

5. Example: E-Commerce Order Flow

Let's model a complete e-commerce order processing system involving multiple services and external systems. This example demonstrates synchronous calls, asynchronous messages, and error handling.

5.1 Interaction Sequence Description

Participants:

User/Browser: Customer interface
API Gateway: Entry point, authentication, routing
Order Service: Manages order creation and persistence
Payment Service: Processes payment transactions
Inventory Service: Manages stock levels
Notification Service: Sends order confirmations (async)

5.2 Text-Based Diagram

5.3 Step-by-Step Explanation

User Submits Order: Customer clicks "Place Order" in browser
Browser to API Gateway: Sends POST request with order details and auth token
API Gateway to Order Service: Validates request, creates order object
Order Service Persists: Stores order in database, returns order ID
Order Service to Payment Service: Initiates payment charge (synchronous, critical path)
Payment Service Processes: Communicates with payment gateway, returns success/failure
Order Service to Inventory Service: Reserves inventory items (synchronous)
Inventory Service Validates & Updates: Checks stock, reduces quantities, returns confirmation
Order Service to Notification Service (Async): Sends fire-and-forget notification for confirmation email
API Gateway to Browser: Returns 200 OK with order details
Browser Renders: Shows order confirmation page to user
Notification Service (Background): Sends confirmation email asynchronously

6. Example: Authentication Flow (OAuth 2.0)

OAuth 2.0 is a widely-used authorization framework. Here's the Authorization Code Flow, which is the most secure option for user-facing applications.

6.1 OAuth 2.0 Authorization Code Flow

6.2 Token Refresh Flow (Happens Later)

When the access token expires, the client uses the refresh token to obtain a new access token without requiring the user to re-authenticate.

7. Example: Microservices Saga Pattern

The Saga pattern solves the distributed transaction problem in microservices architectures. Here's a choreography-based saga with compensating transactions on failure.

7.1 Choreography-Based Saga: Trip Booking

Scenario: User books a trip including flight, hotel, and rental car. If any reservation fails, previous reservations are rolled back via compensating transactions.

7.2 Key Saga Concepts

Choreography: Services emit events; other services listen and react. Decoupled but can be harder to trace.
Orchestration: Central orchestrator directs each service. Easier to understand but creates a single point of control.
Compensating Transactions: Explicit rollback operations that undo previous actions (e.g., cancel flight, refund payment).
Idempotency: Each operation must be safe to retry; otherwise, retries during recovery can cause data corruption.

8. Mermaid.js Code Examples

Mermaid.js is a JavaScript-based diagramming library that renders diagrams from text descriptions. You can include these code blocks in documentation and render them dynamically in web pages.

8.1 E-Commerce Order Flow in Mermaid

sequenceDiagram
    actor User
    participant Browser
    participant API as API Gateway
    participant Order as Order Service
    participant Payment as Payment Service
    participant Inventory as Inventory Service
    participant Notify as Notification Service

    User->>Browser: Click Place Order
    Browser->>API: POST /orders (cart, auth)
    API->>Order: create_order()
    Order->>Order: persist to DB
    Order-->>API: order_id

    Order->>Payment: charge($99.99)
    Payment->>Payment: process with gateway
    Payment-->>Order: success

    Order->>Inventory: reserve_items(qty: 2)
    Inventory->>Inventory: check stock, reduce
    Inventory-->>Order: reserved

    Order->>Notify: send_confirmation(async)

    API-->>Browser: 200 OK (order details)
    Browser->>User: Render confirmation

    par Background Processing
        Notify->>Notify: send email
    end

8.2 OAuth 2.0 Flow in Mermaid

sequenceDiagram
    actor User
    participant Client as Client App
    participant Auth as Auth Server
    participant Resource as Resource Server

    User->>Client: Click "Login with OAuth"
    Client->>Auth: Redirect to login (client_id, scope, redirect_uri)
    Auth->>User: Display login form
    User->>Auth: Submit credentials
    Auth->>Auth: Validate credentials
    Auth-->>Client: Redirect with authorization code
    Client->>Auth: Exchange code for token (client_id, secret, code)
    Auth->>Auth: Validate code and client
    Auth-->>Client: Access token + Refresh token
    Client->>Resource: Request user data (access token)
    Resource->>Resource: Validate token
    Resource-->>Client: User profile data
    Client-->>User: Logged in, show dashboard

8.3 Saga Pattern Compensating Transactions in Mermaid

sequenceDiagram
    participant Trip as Trip Service
    participant Flight as Flight Service
    participant Hotel as Hotel Service
    participant Car as Car Service
    participant Payment as Payment Service

    Trip->>Flight: Reserve flight
    Flight->>Flight: Check availability
    Flight-->>Trip: OK

    Trip->>Hotel: Reserve hotel
    Hotel->>Hotel: Check availability
    Hotel-->>Trip: OK

    Trip->>Car: Reserve car
    Car->>Car: Check availability
    Car-->>Trip: FAILED - No cars available

    Note over Trip: Compensating transactions begin

    Trip->>Hotel: Cancel reservation
    Hotel->>Hotel: Release booking
    Hotel-->>Trip: Cancelled

    Trip->>Flight: Cancel reservation
    Flight->>Flight: Release booking
    Flight-->>Trip: Cancelled

    Trip->>Payment: Refund authorization
    Payment->>Payment: Process refund
    Payment-->>Trip: Refunded

    Trip-->>Trip: Trip booking saga FAILED

9. Best Practices

Effective sequence diagrams require discipline and adherence to key principles:

9.1 Diagram Focus and Scope

One Scenario Per Diagram: Each sequence diagram should illustrate a single, well-defined scenario or use case.
Keep It Focused: Avoid combining multiple interaction patterns in a single diagram.
Clear Title: Use a descriptive title that captures the interaction being modeled.

9.2 Participant Limits

Limit Participants: Aim for 5-7 participants maximum. More than that makes diagrams hard to read.
Use Reference Diagrams: Employ "ref" fragments to decompose complex interactions across multiple diagrams.
Group Related Participants: Arrange participants logically (e.g., user-facing components on the left, backend services on the right).

9.3 Message Naming Conventions

Use Method Names: Name messages after actual method calls in your codebase (e.g., `charge()`, `reserve_items()`).
Include Parameters: Show important parameters: `charge($99.99)`, `reserve(qty: 2, item_id: ABC123)`.
Show Return Values: Include return values for clarity: `--→ order_id` or `←-- success`.

9.4 Happy Path and Error Paths

Start with Happy Path: First show the successful, non-error scenario.
Error Paths Separately: Create additional diagrams for failure scenarios and exception handling.
Use alt Fragments: When error paths are brief, use `alt` combined fragments within a single diagram.

9.5 Combined Fragments Usage

Use Sparingly: Combined fragments add complexity; use them only when necessary.
Label Clearly: Always label combined fragments with conditions and guard expressions.
Keep Nesting Shallow: Avoid deeply nested combined fragments; use reference diagrams instead.

9.6 Synchronous vs Asynchronous

Synchronous for Critical Paths: Use synchronous messages when the caller must wait for a response.
Asynchronous for Independence: Use asynchronous messages for fire-and-forget operations and event notifications.
Be Explicit: Clearly distinguish between synchronous and asynchronous to avoid confusion about blocking behavior.

9.7 Documentation and Clarity

Add Notes: Use note boxes to explain non-obvious behavior or assumptions.
Version Control: Keep sequence diagrams in version control alongside code.
Keep Updated: Sequence diagrams must stay synchronized with actual implementation; outdated diagrams mislead.

10. Tools for Creating Sequence Diagrams

Multiple tools support sequence diagram creation, each with different strengths and workflows:

10.1 PlantUML

PlantUML is a text-based diagram generator supporting UML and non-UML diagrams. Write diagram code as plain text, then PlantUML renders PNG or SVG output. Integrates with many IDEs (VS Code, IntelliJ, etc.) and documentation generators (Sphinx, MkDocs). Free and open-source. Excellent for version-controlling diagrams as code.

10.2 Mermaid.js

Mermaid.js is a JavaScript library enabling diagram creation from markdown-like syntax. Renders in the browser natively, integrates with GitHub README files, and supports Jekyll/static sites. Simpler syntax than PlantUML; ideal for documentation sites and collaborative platforms. Free and open-source. Perfect for embedding diagrams in web pages.

10.3 Lucidchart

Lucidchart is a cloud-based diagramming platform with a visual editor. Offers extensive UML support, real-time collaboration, and integration with other tools (Jira, Confluence, Google Workspace). Paid (free tier available). Best for teams requiring visual, collaborative diagramming.

10.4 Draw.io (now diagrams.net)

Draw.io (diagrams.net) is a free, open-source diagramming tool available online and as a desktop app. Supports sequence diagrams, flowcharts, and UML. Integrates with Google Drive, GitHub, Confluence. Simple visual editor with drag-and-drop interface.

10.5 Visual Paradigm

Visual Paradigm is a comprehensive UML and software modeling tool. Professional-grade with advanced features: model-driven development, reverse engineering, code generation. Paid (community edition available). Best for large enterprises and complex modeling needs.

10.6 Figma Plugins

Figma offers various diagram plugins (e.g., FigJam, third-party plugins). Excellent for design teams; integrates with design workflow. Paid (with free tier). Best when diagramming is secondary to design work.

11. Conclusion

Sequence diagrams are indispensable for documenting system interactions, designing APIs, and communicating technical architecture with stakeholders. By mastering the core notation, message types, combined fragments, and best practices outlined in this guide, you'll be equipped to create clear, maintainable, and effective sequence diagrams that serve as living documentation of your system's behavior.

Start simple—document your happy paths first, then add error and edge-case scenarios. Use text-based tools like PlantUML or Mermaid.js to version control your diagrams alongside code. Keep diagrams focused, use consistent naming conventions, and update them as your system evolves.

Pros and Cons

Pros

Makes call order, latency hotspots and chatty interfaces obvious.
Very readable for non-specialists; it looks like a conversation.
Ideal for API contracts, auth handshakes and microservice flows.
Combined fragments express error paths and retries compactly.
Excellent diagrams-as-code support (Mermaid, PlantUML) that lives in Git.
Maps directly to integration and contract tests.

Cons

Shows one scenario at a time; full branching logic gets cluttered.
Becomes wide and hard to read beyond 6-8 participants.
Says nothing about static structure or data shapes.
Easily goes stale as service boundaries change.
Concurrency and timing constraints are awkward to show precisely.

When to Use / When Not To

When to use

Explaining a request path across services or layers.
Designing or reviewing API integrations and protocols (OAuth, payments).
Debugging or documenting an incident timeline.

When not to use

For the complete set of business rules (use an activity or state diagram).
For simple single-function logic.
To show deployment or structure.

Main Example as Diagrams-as-Code

Rendered by PlantUML (PlantUML server, IDE plugins or plantuml.jar). Mermaid versions are in the section above; this is the e-commerce order flow in PlantUML:

@startuml
actor Customer
participant "Web App" as Web
participant "Order Service" as Orders
participant "Inventory" as Inv
participant "Payment Gateway" as Pay
Customer -> Web : place order
activate Web
Web -> Orders : createOrder(cart)
activate Orders
Orders -> Inv : reserve(items)
Inv --> Orders : reserved
Orders -> Pay : charge(card, total)
alt payment approved
  Pay --> Orders : approved
  Orders ->> Inv : commit(items)
  Orders --> Web : 201 Created
else payment declined
  Pay --> Orders : declined
  Orders ->> Inv : release(items)
  Orders --> Web : 402 Payment Required
end
deactivate Orders
Web --> Customer : confirmation / error
deactivate Web
@enduml

UML Diagrams — overview of all 14 UML diagram types
Class Diagrams — static structure: classes, attributes, relationships
Activity Diagrams — workflows with decisions and parallel flows
Use Case Diagrams — actors and the goals the system serves them
Object Diagrams — object instances and links at one moment
Package Diagrams — grouping of model elements into namespaces
Component Diagrams — replaceable parts and their interfaces
Composite Structure Diagrams — internal parts and ports of a class
Deployment Diagrams — artifacts on nodes and hardware
State Machine Diagrams — lifecycle of one object
Communication Diagrams — interactions organised around links
Timing Diagrams — state changes against a time axis
Interaction Overview Diagrams — control flow between interactions
